Active LED Authorized Dealer & Supplier in India

What Is Active LED Technology?

"Active LED" refers to display and lighting technology built from self-emitting light-emitting diodes, where each individual diode (or diode cluster) generates its own light rather than being illuminated from behind, as is the case with conventional LCD panels. Because every pixel is its own light source, Active LED displays achieve far higher brightness output, wider viewing angles, and better performance in high-ambient-light environments than backlit alternatives. This is the same underlying principle used in modern direct-view LED video walls, LED signage modules, LED strip lighting for architectural and retail use, and large-format outdoor LED displays.

The term is used broadly across the AV and signage industry to distinguish "active" (self-emitting, individually addressable) LED products from "passive" LED backlighting used inside standard LCD monitors and televisions. When a business asks for an Active LED solution, they are typically asking for a modular, tileable, self-emitting display or lighting system that can be built up to almost any size and shape, rather than a fixed single-panel screen.

Product Forms We Supply

Active LED is not one single product but a family of related products, and as an Active LED manufacturers and suppliers India partner we supply across the range: individual LED display modules and cabinets for building custom video walls, pre-configured indoor and outdoor LED video wall kits, LED strip and linear lighting for architectural, retail-shelf and signage use, LED control and sending systems (sending cards, receiving cards, video processors) that drive an Active LED installation, and replacement modules, power supplies and cabling for existing installations that need expansion or repair.

Key Specifications To Evaluate

Before ordering, every serious Active LED buyer should understand a handful of technical parameters, because getting these wrong is the single biggest cause of a disappointing installation. Pixel pitch (the distance in millimetres between adjacent LED clusters) determines both resolution and minimum recommended viewing distance — a tighter pitch such as P1.2 or P1.5 is appropriate for close-viewing applications like a boardroom or control room, while a wider pitch such as P4 or P6 is perfectly acceptable, and considerably more economical, for a display viewed from ten metres or more, such as an auditorium backdrop or outdoor hoarding. Brightness, measured in nits, needs to be matched to the installation environment: an indoor lobby display rarely needs more than 800-1200 nits, while an outdoor, direct-sunlight installation typically requires 4,000-6,000 nits or more to remain legible. Refresh rate matters most when the display will be filmed on camera, such as in a broadcast studio or during a livestreamed event, where a low refresh rate produces visible flicker or banding on camera even though it looks fine to the naked eye. Cabinet size and weight determine how the structure will be mounted and how much load the wall, floor stand or ceiling rigging needs to bear, and IP rating becomes critical for any outdoor or semi-outdoor Active LED installation exposed to dust and moisture.

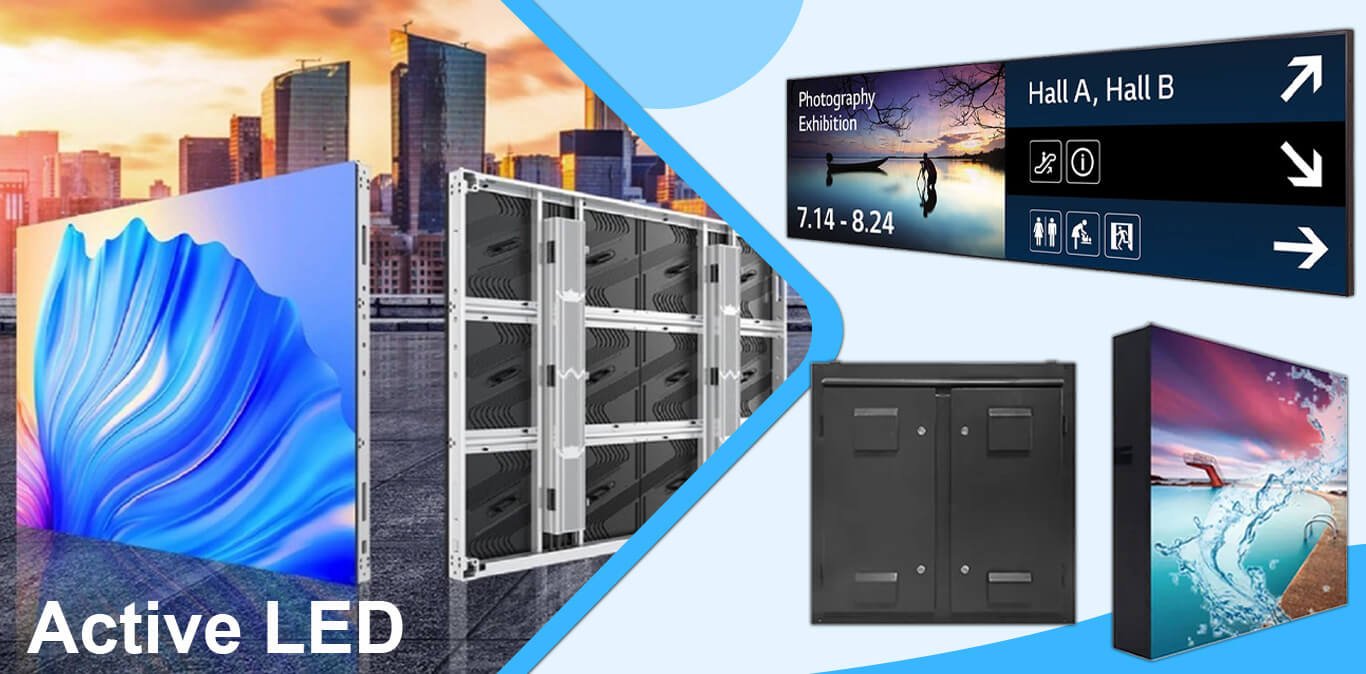

Modular Active LED Video Walls Built To Your Room

Every Active LED wall we supply is specified around the room it will live in — pixel pitch matched to viewing distance, brightness matched to ambient light, and a control system sized to the number of sources you actually need to display. Cabinets are tileable, allowing the same product family to scale from a small reception display to a large multi-cabinet command-centre wall without changing supplier or support relationship partway through a rollout.

How to Choose the Right Active Led Solution

Choosing the right Active LED configuration starts with the viewing context, not the specification sheet. Walk through the room or site first: how far will the nearest viewer typically stand from the display, what is the ambient light level at different times of day, and is the mounting surface a permanent wall, a temporary truss, or an outdoor structure exposed to weather? These answers determine pixel pitch and brightness far more reliably than picking the "best" numbers available.

For corporate lobbies, reception areas and retail storefronts, a moderate pitch (P2.5-P4) balanced against budget usually delivers the best value, since viewers rarely stand closer than two to three metres. For control rooms, network operations centres, and command-and-control installations where operators sit close to the wall and need to read fine text and multiple video feeds simultaneously, a tighter pitch (P1.2-P1.8) is worth the additional cost. For auditoriums, event stages and large public-facing signage viewed from a distance, a wider pitch keeps the total installation affordable while still delivering strong visual impact.

Indoor versus outdoor placement changes almost every other decision. Outdoor Active LED needs an appropriate IP-rated cabinet (commonly IP65 on the front and IP54 on the rear as a practical minimum for the Indian climate, with monsoon humidity and dust a real factor across most of the country), significantly higher brightness to remain visible in direct sunlight, and a more robust structural mounting plan to handle wind load. Indoor installations have more flexibility on IP rating but need attention to heat dissipation and ventilation, particularly in enclosed control rooms running the display continuously.

Redundancy and serviceability are often overlooked until something fails. A well-specified Active LED video wall should allow front or rear module access for servicing individual cabinets without dismantling the whole wall, and mission-critical installations such as control rooms or broadcast studios should specify a control system with input redundancy (backup sending card, dual power feed) so a single point of failure does not black out the entire display during a live event or during an operationally critical monitoring window.

Budget planning should also account for the control and processing layer, not just the LED cabinets themselves. A sending card, receiving cards per cabinet, and a video processor or wall controller (needed if you plan to display multiple sources, split-screen layouts, or integrate with a video management system) add meaningfully to project cost but are what actually make a modular Active LED wall usable day to day, rather than a fixed single-image display.

Finally, factor in installation and commissioning. Active LED walls are engineered products that need correct cabinet alignment, colour calibration across modules, and structural mounting appropriate to the site — this is not a plug-and-play television. Working with a supplier who can either install directly or coordinate closely with your integrator avoids the common problem of mismatched colour temperature between cabinets or an uneven, visibly seamed final wall.

Why Businesses Choose Rudraksh Industries for Active Led

Rudraksh Industries operates as a GeM-registered Active LED supplier in India, and government departments, PSUs and institutions across the country regularly source their Active LED requirements from us through the Government e-Marketplace as well as through direct wholesale purchase. Being an authorized dealer in India means every unit we supply comes with correct documentation, GST-compliant invoicing and a traceable supply chain — something a grey-market or unauthorized import simply cannot offer, and something that matters directly when a display needs warranty service two years into its operating life.

Businesses searching for an Active LED dealer near me India or looking for the nearest dealer in India for an active technology install often assume that after-sales support is uniform across suppliers; in our experience it is not. Active LED is a mechanically and electronically serviceable product — individual modules, power supplies and receiving cards can and do need replacement over a multi-year installation lifespan — and support quality depends heavily on whether the original supplier stocks spares, understands the specific configuration that was installed, and is reachable when something needs attention. As a Nehru Place, Delhi-based Active LED supplier with PAN India delivery, we keep a direct relationship with every project we supply so that support requests go to a team that already knows the installation, not a generic call centre.

For departments and organisations that must route procurement through a formal gov bid supplier India process, our GeM registration lets Active LED purchases move through the required government tender and bid workflow without the delays that come from working with an unregistered vendor. For private-sector buyers assembling a larger multi-site rollout, we operate as a genuine wholesale market in India source for Active LED components, structuring bulk pricing, consistent specification across sites, and a single consolidated invoice rather than piecemeal purchasing from multiple resellers.

Whether the requirement is a single indoor display for a reception area or a multi-cabinet outdoor video wall for a public venue, our team works through pixel pitch, brightness, mounting and control-system selection with you before quoting, so the configuration that arrives on site is the one that actually fits the room and the use case.

Bulk & GeM Procurement for Active Led

Rudraksh Industries is a GeM-registered dealer, distributor, supplier and wholesaler for Active Led in India, supporting both direct wholesale/bulk orders and formal government tender procurement through the Government e-Marketplace (GeM). Corporate offices, educational institutions, retail chains and system integrators regularly need Active Led in quantities beyond a single-unit purchase, and as a wholesale distributor we structure pricing, delivery scheduling and configuration standardisation specifically around bulk requirements — one point of contact, consistent configuration, volume-based pricing and one consolidated GST invoice.
